Weight Transmitter DAT 400 Analog

DAT 400 Analog

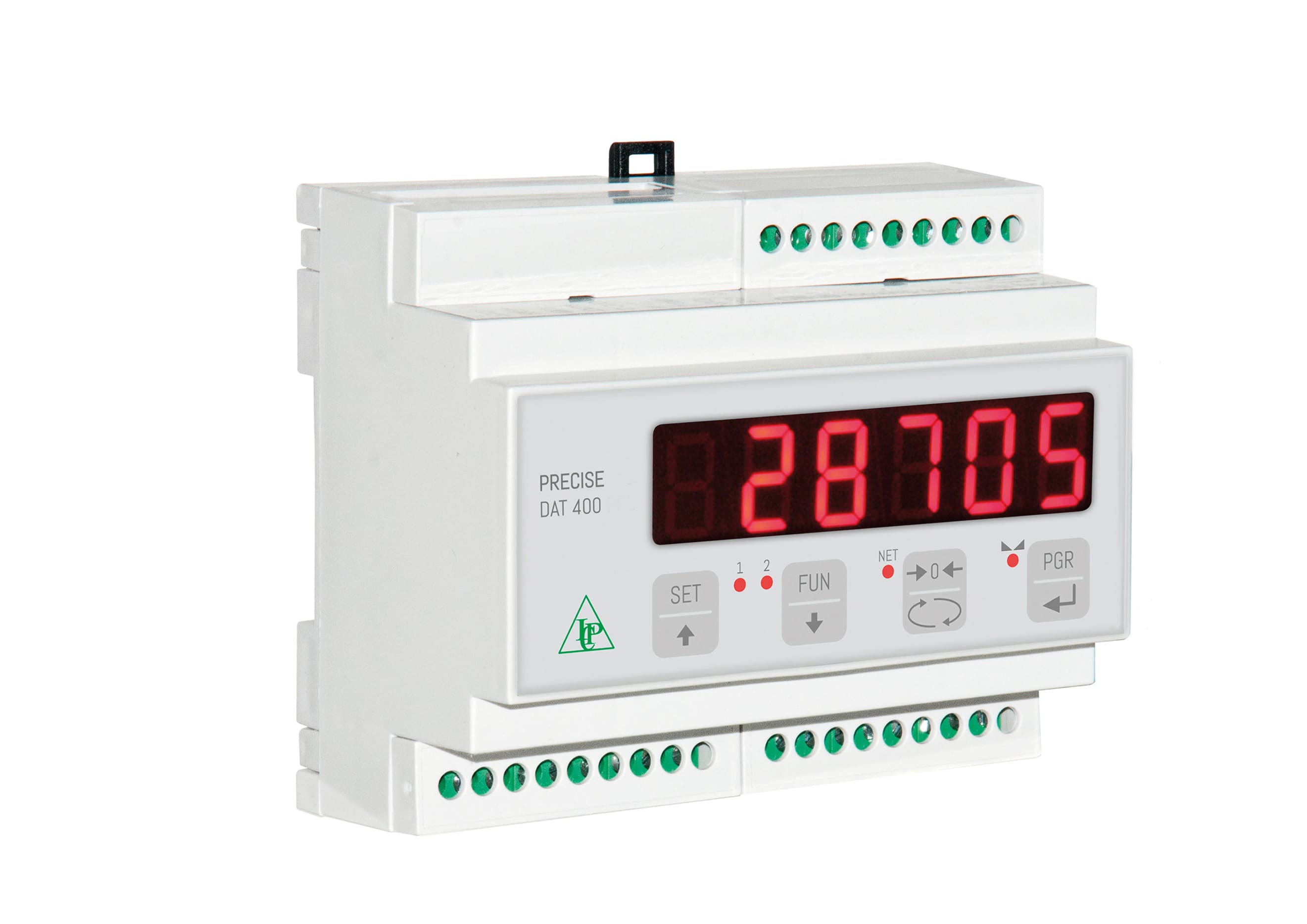

The DAT 400 Analog weight transmitter is an exclusive product of Pavone Systems that guarantees high performance and reliability. It has an upload and download function for programming with Tester 1008. Configuration and calibration can be set up from the front panel or from a PC via the USB port. The bipolar option is available on request. The DAT 400 Analog weight transmitter can be customized according to customer needs. It has a peak hold function for dynamic measures and screw terminal blocks. PWS: 31/2015

Further Information

Technical Specifications in PDF

Watch our tutorial

Product code: PSDA0400

Technical Specifications

Measuring range: -0.5 ÷ +3.5 mV/V (-3.9 ÷ +3.9 mV/V optional)
Input sensitivity: 0.02 µV/count
Full scale non-Linearity: <0.01%
Gain drift: < 0.001% FS/°C
Display: 6 digit, red LED (7 segments), h 14 mm
A/D Converter: 24 bit
Internal Resolution: > 16.000.000 points
Trasducer input voltage: 5 V (max 6 load cells 350 Ohm)
Visible resolution (in divisions): 60000
Divisions value (adjustable): x1, x2, x5
Decimal figures range: 0 ÷ 3
Temperature range: -10 ÷ +50°C (max umidity 85% without condensation)
Storage temperature: -20 ÷ +70 °C
Filter: 0.1 ÷ 25 Hz
Logic output: 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each)
Logic input: 2 optoisolated 24 Vcc PNP (External voltage)
Serial port: Nr. 2 - USB/RS232C, RS485 with ASCII or Modbus RTU protocols
Power supply: 24 Vcc ±15% - power 5 W
Regulatory compliance: EN61326-1, EN55011, EN55014 for EMC; EN61010-1 for electrical security
Analog output: optoisolated 16 Bit Tension: 0÷5/10 V (R min10 K Ohm), Current: 0/4÷20 mA (R max 300 Ohm)
Dimensions and weight: 106 x 90 x 58 mm (L x H x P); 250 g
Baud rate: 2400, 9600, 19200, 38400, 115200 adjustable (RS232)
Transmission distance: 15m (RS232C), 1000m (RS422; RS485)
